Supply 10mm Width Of Hot Sandblasted Plated Diamond Abrasive Belt In Large Quantity
Name: Diamond Belt for Polishing
Blade Modal No: RTR-SD-005
Sample Size: 330 * 10 mm
(Cutting according to client's requirement specification)
To a certain extent, diamond abrasive belt polishing used in
thermal spraying industry can replace diamond grinding wheel
polishing and film polishing. Diamond abrasive belt can complete
the grinding and polishing process. In recent years, it is widely
used in thermal spraying industry, production and maintenance of
hydraulic cylinder and turbine blade.
Application:
Diamond abrasive belt can be widely used for grinding hard and
brittle materials such as steel, stone, glass, ceramics,
monocrystalline silicon, polycrystalline silicon, zirconia,
alumina, metal and nonmetal synthetic materials, cemented carbide,
aluminum magnesium alloy, aluminum beryllium alloy, titanium alloy,
etc.
Example parameters for mills and materials:
Workpiece diameter 400mm * 12 HVOF spraying
Grinder model: 656
Belt speed: 22m / S (2800rpm)
Belt contact way: soft contact or hard contact.
Workpiece speed: 30 rpm
Coolant: water or other.
Spraying thickness: 250 μ M
Original roughness: RA 0.4mm-0.6mm
Spraying allowance: 100 μ M
Coating thickness after processing: 150 μ M
Specification:
| Grit Size (mesh) | RA (um) |
| 100# | 1.0um |
| 200# | 0.6um |
| 400# | 0.2um |
| 800# | 0.11um |
| 1500# | 0.05um |
| 3000# | 0.02um |
This type of diamond square wafer is a kind of grindling pieces for
hand use easily.
Characteristic of Diamond Soft Grinding Belt:
- Strong grinding force;
- High polishing high finish;
- High wear resistance ;
- There is no scratch and color left on the stone after grinding and
polishing (not easy to dye);
- Sharp；
- Long service life.

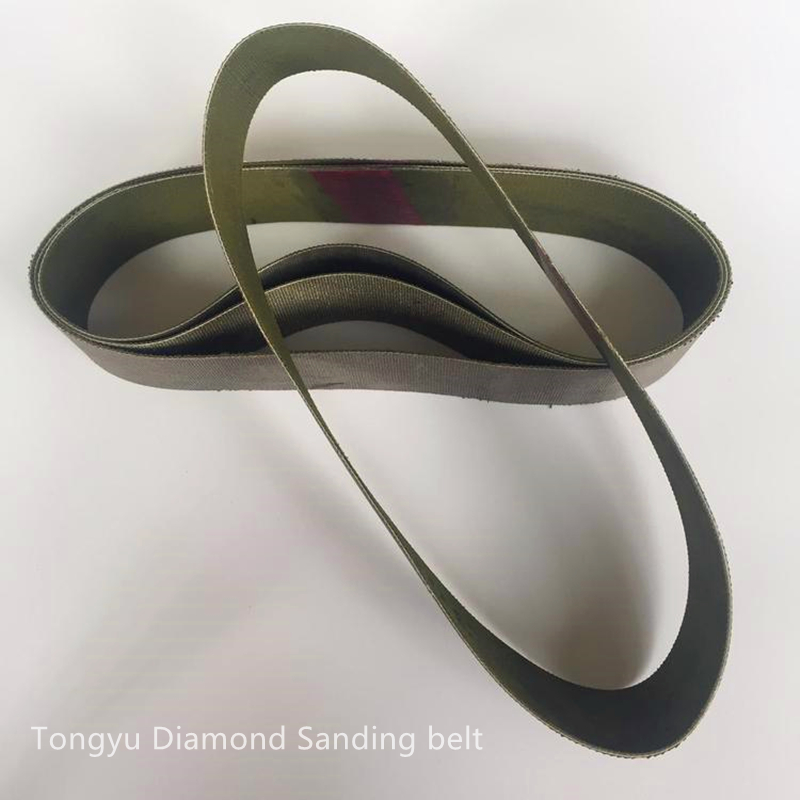

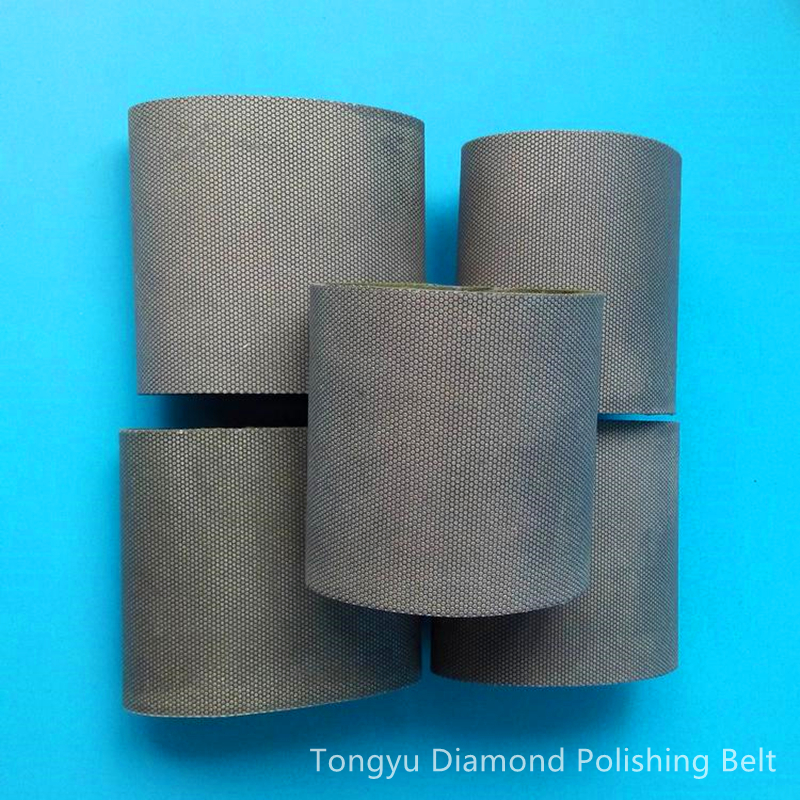

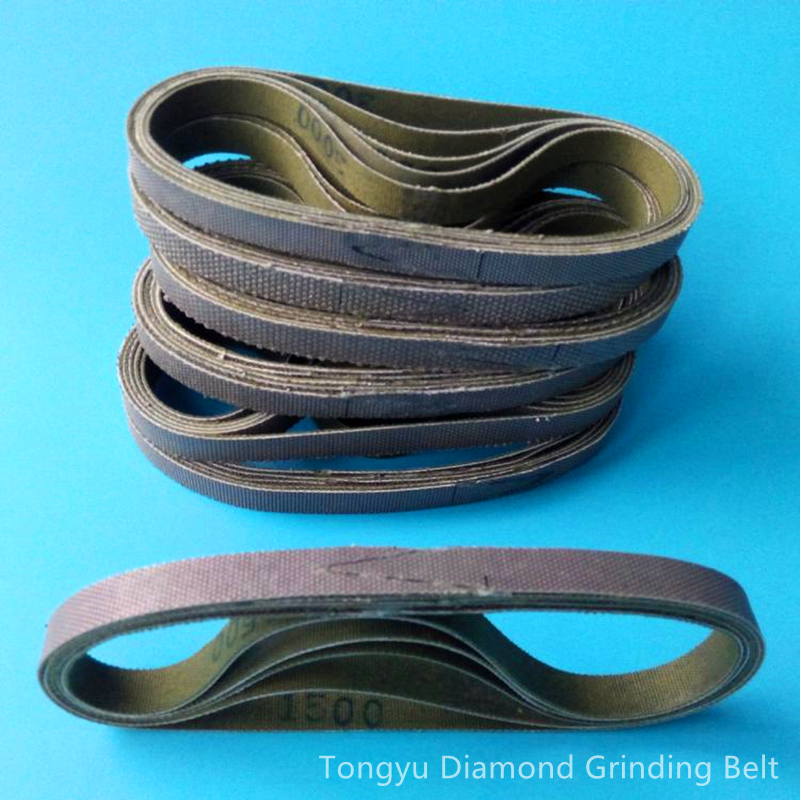

More Pictures of Diamond Sanding Belt
Ordering instructions:
When you order for the first time, please provide the following
parameters, so that we can help you choose the most suitable
cutting wheel.
Specification and size: abrasive, particle size, binder, outer
diameter, thickness, inner diameter, abrasive working layer width,
substrate thickness, etc. purpose: workpiece name, cutting size,
cutting material;
Service conditions of grooving and cutting: machine tool, grinding
wheel speed, feed speed and cutting depth;
Dry and wet cutting requirements: cutting accuracy, chipping
requirements, processing surface integrity, etc
Special requirements: whether the tool is assembled and used, whether the resin cutting
wheel needs to conduct electricity, whether the outer circle of the
cutting wheel has a water tank, the size and quantity of the water
tank, whether there is a chip removal groove on the outer side of
the cutting wheel base, etc.
Order Operating Procedure:
FAQ:
Q: Do you accept trial order?
A: Yes, small order is available here.Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample free of charge, but clients would
bear for the courier freight charges.
Q: How long is your delivery time?
A: Usually 3 days for ready stocklots. and 5-15 days for new
customed order, it is according to quantity.
Q: What is your terms of payment?
A: T/T, Western Union, Paypal, L/C, others.
Q: Can you provide OEM service?
A: Yes, we can produce the goods with clients' logo and brand.
Over 15 years of developing and producing experience in high
precision super hard material tools, we have
established a high efficiency system to provide stable performance
wheel products.
We welcome yr free inquiry for any question in our diamond cutting
wheels. In order to supply exact wheel
type and quotatioon to you, if possible, better for you to provide
us more information like followings:
1. Yr processing objects.
2. Yr OD, ID, Thickness data.
3. Grit size if possible.
4. Rotary speed of your processing machine.
Many Thanks.
