Chrome Corundum Grinding Wheel Bonded With Ceramic

Red Corundum Grinding Wheel type: TY-CRDM400

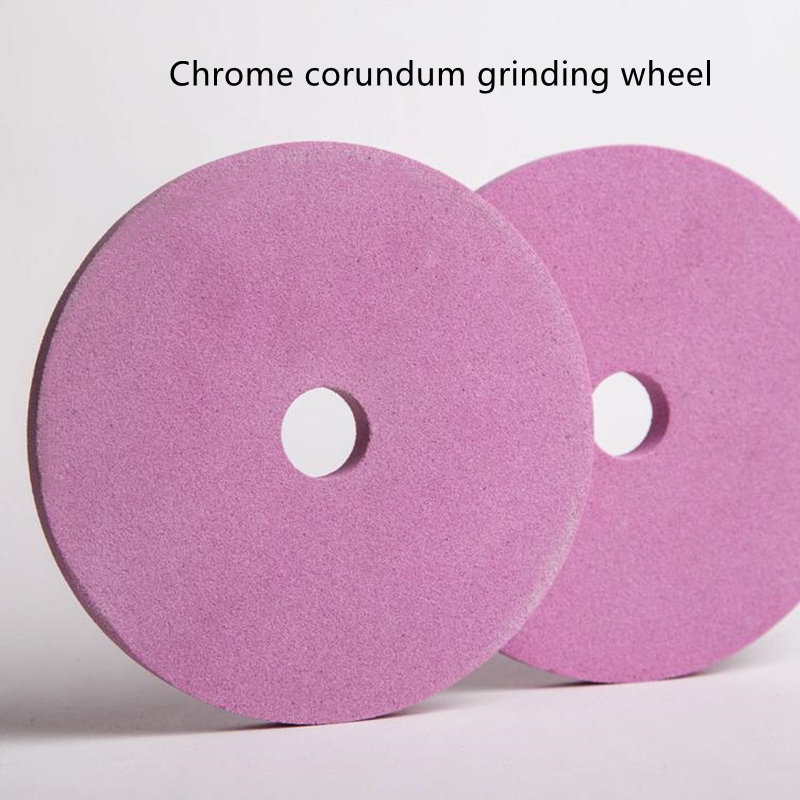

Name: Chrome corundum grinding wheel

Specification: 400 * 40 * 127 mm ( OD * T * ID)

Grit Size: 36-400#, Popular used 40# 60# 80# 100# 120# 140#

Grinding object: hardened steel and tool steel etc.

Feature: high durability and good precision during grinding. It is especially suitable for products requiring high precision and good finish, such as cutting tools, measuring tools, instruments and threads.

1. Sketch map of our diamond abrasive wheel

D: out diameter

H: inner diameter

T: thicknesss

X: abrasive area width

2. Detail size matching of our normal grinding wheels.

We accept customed special sizes from client, prefer quantity not less than 10pieces.

Regular sizes as: 125, 350, 400, 500, 600mm (Outdiameter)

• Type 1: 125*20*32 mm
• Type 2: 350*40*127 mm
• Type 3: 400*40*127 mm
• Type 4: 400*40*203 mm
• Type 5: 500*75*305 mm
• Type 6: 600*63*305 mm

3. More Pictures of our diamond wheel

4. Character of our grinding wheels

• High wear resistance
• Long processing life
• Sharp with high abbrasive efficiency
• Wide range of processing applications.

5. Our Operating Procedure

Over 15 years of developing and producing experience in high precision super hard material tools, we have

established a high efficiency system to provide stable performance wheel products.

We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel

type and quotatioon to you, if possible, better for you to provide us more information like followings:

1. Yr processing objects.

2. Yr OD, ID, Thickness data.

3. Grit size if possible.

4. Rotary speed of your processing machine.

Many Thanks.
