Electroplated Diamond Grinding And Polishing Wheel For Cast Iron
And Castings
Electroplated Diamond Wheel type: TYDD-1A1(T2)
Product Name: diamond grinding wheel
Material: high quality diamond
Matrix material: 45# steel

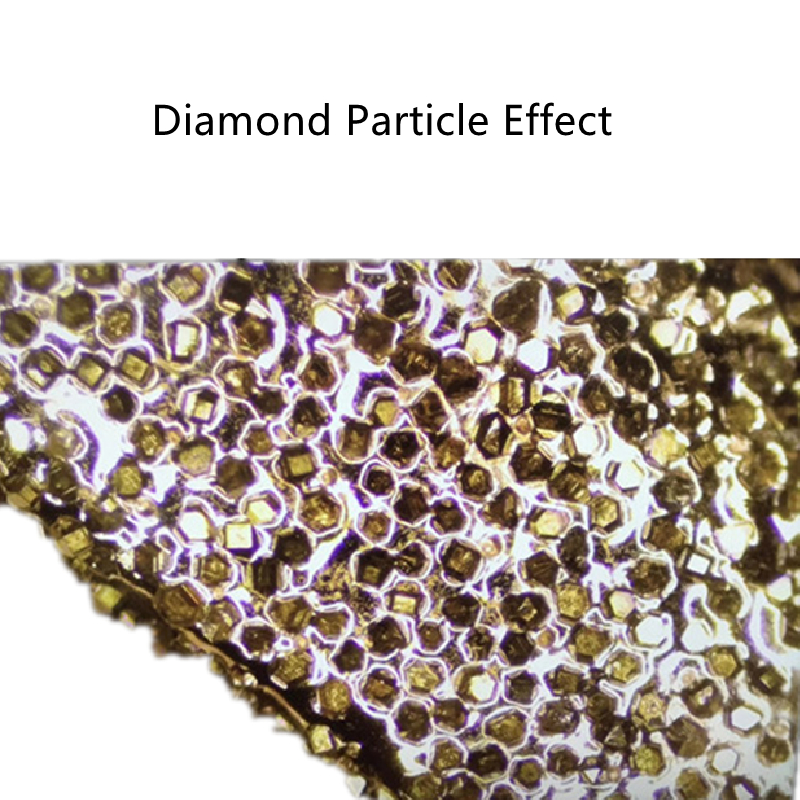

Appearance: check the distribution uniformity, firmness and coating of
diamond.
Application fields:
This product is suitable for the grinding, deburring and polishing
of ferrous metals: cast steel, cast iron, non-ferrous metals: cast
aluminum alloy, aluminum magnesium alloy. The product has high
manufacturing accuracy, long service life, low single piece
processing cost, and can be used under high speed conditions,
greatly improving the work efficiency. It solves the grinding of large workpieces (aerospace engine room,
hull, wind turbine blade, engine blade, composite pipe, etc.) and
the integrated deburring and polishing of workpieces with complex
contour (engine cylinder block, cylinder head and other castings).
1. Sketch map of our diamond abrasive wheel
D: out diameter
H: inner diameter
T: thicknesss
X: abrasive area width
2. Detail size matching of our normal grinding wheels.
We accept customed special sizes from client, prefer quantity not
less than 10pieces.
| Dimension(mm) |
| D | T | | | | | | | H | | X |
| 16 | 8 | 10 | 16 | | | | | 4 | | 2 |
| 18 | 8 | 10 | 16 | 20 | | | | 6 | | 2 |
| 20 | 6 | 8 | 10 | 12 | 16 | 20 | | 6 | | 3 |
| 25 | 6 | 8 | 10 | 12 | 16 | 20 | | 6 | | 3 |
| 30 | 10 | 16 | 20 | | | | | 10 | | 3 |
| 40 | 6 | 8 | 10 | 12 | | | | 10 | | 3 |
| 50 | 6 | 8 | 10 | 12 | 16 | | | 10 | | 3 |
| 60 | 6 | 8 | 10 | 16 | 20 | | | 10 | | 3 |
| 75 | 6 | 10 | 12 | | | | | 10 | 20 | 3 |
| 80 | 6 | 8 | 10 | 16 | 20 | | | 10 | 20 | 3 |
| 100 | 6 | 8 | 10 | 12 | 16 | 20 | | 20 | | 4 |
| 125 | 6 | 8 | 10 | 12 | 15 | 16 | 20 | 20 | 32 | 4 |
| 150 | 6 | 8 | 10 | 12 | 15 | 16 | 20 | 32 | | 4 |
| 175 | 6 | 10 | 12 | 15 | 20 | | | 32 | | 4 |
| 200 | 6 | 8 | 10 | 12 | 15 | 16 | 20 | 32 | 75 | 4 |
| 250 | 6 | 10 | 12 | 15 | 20 | | | 75 | 127 | 5 |
| 300 | 10 | 12 | 15 | 20 | 32 | 40 | | 127 | 203 | 5 |
| 350 | 12 | 15 | 16 | 20 | 25 | 32 | 40 | 127 | 203 | 5 |
| 400 | 10 | 12 | 15 | 16 | 20 | 32 | 40 | 203 | | 5 |

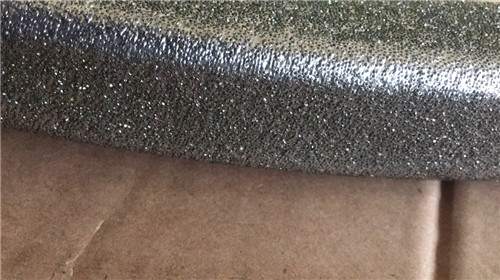

3. More Pictures of our diamond wheel
4. Character of our grinding wheels
- High wear resistance
- Long processing life
- Sharp with high abbrasive efficiency
- Wide range of processing applications.
5. Our Operating Procedure
FAQ:
Q: Do you accept trial order?
A: Yes, small order is available here.Q: Do you provide samples ? is it free ?
A: Yes, we could offer the sample free of charge, but clients would
bear for the courier freight charges.
Q: How long is your delivery time?
A: Usually 3 days for ready stocklots. and 5-15 days for new
customed order, it is according to
quantity.
Q: What is your terms of payment?
A: T/T, Western Union, Paypal, L/C, others.
Q: Can you provide OEM service?
A: Yes, we can produce the goods with clients' logo and brand.
Over 15 years of developing and producing experience in high
precision super hard material tools, we have
established a high efficiency system to provide stable performance
wheel products.
We welcome yr free inquiry for any question in our diamond cutting
wheels. In order to supply exact wheel
type and quotatioon to you, if possible, better for you to provide
us more information like followings:
1. Yr processing objects.
2. Yr OD, ID, Thickness data.
3. Grit size if possible.
4. Rotary speed of your processing machine.
Many Thanks.
