High Quality Electroplated CBN Grinding Wheel Suitable For Band Saw Grinding

Electroplated CBN Wheel type: TYDD-wheel-002

Product Name: Electoplated CBN grinding wheel, Band saw grinding wheel

Material: high quality CBN

Matrix material: 45# high carbon steel

Effect: It is used to grind and passivate the band saw blade to make it sharper

Application fields:

Electroplated CBN grinding wheel is specially used for band saw grinding. The electroplating process of CBN plated steel substrate surface can obtain precision and ensure high quality tooth shape, so as to achieve the sharpening effect of band saw blade.

Conventional Specifications of our wheels:

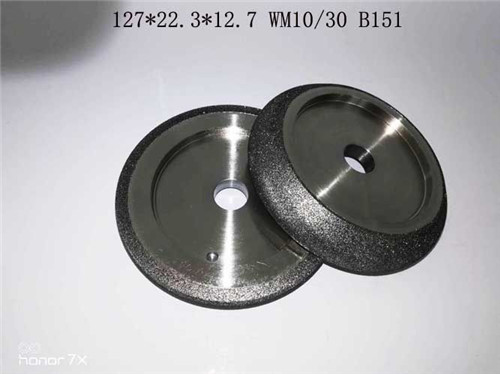

• 5inch wheel:D127mm- -H12.7mm

•


  6inch wheel: D150mm-T22.2mm-H20mm

• 8inch wheel:D203mm-T22.2mm-H32mm

1. Sketch map of our diamond abrasive wheel

D: out diameter

H: inner diameter

T: thicknesss

X: abrasive area width

2. Detail size matching of our normal grinding wheels.

We accept customed special sizes from client, prefer quantity not less than 10pieces.

**Grinding Wheel for different machines**

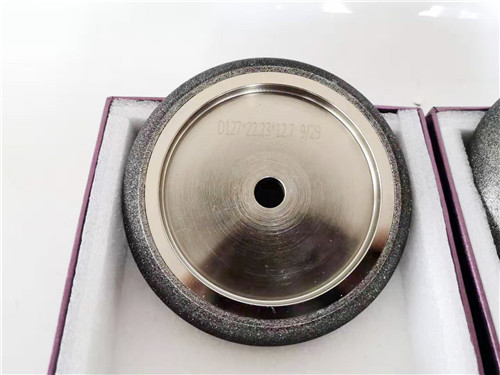

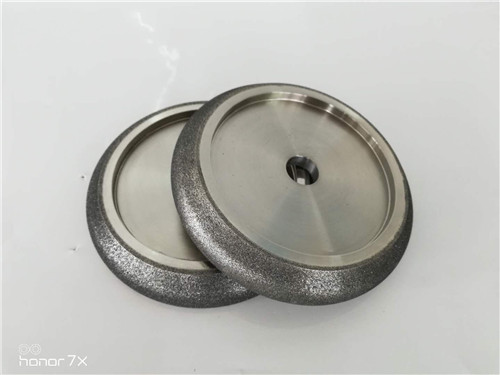

3. More Pictures of our diamond wheel

4. Character of our grinding wheels

• High wear resistance
• Long processing life
• Sharp with high abbrasive efficiency
• Wide range of processing applications.

5. Our Operating Procedure

Over 15 years of developing and producing experience in high precision super hard material tools, we have

established a high efficiency system to provide stable performance wheel products.

We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel

type and quotatioon to you, if possible, better for you to provide us more information like followings:

1. Yr processing objects.

2. Yr OD, ID, Thickness data.

3. Grit size if possible.

4. Rotary speed of your processing machine.

Many Thanks.
